Varia FDh H₂O Image

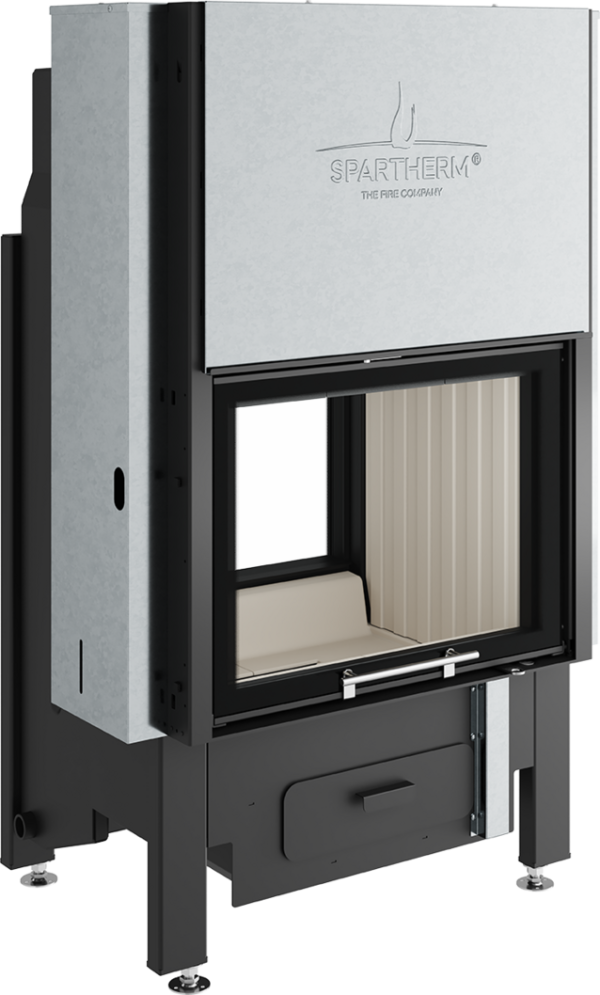

Varia FDh H₂O

Our fireplace elegance with elegant transparency.

Benefits

  • DIGITALLY CONTROLLABLE & MANAGEABLE VIA APP
  • CONSISTENTLY CRACKLE AND FLAME
  • STORE HEAT AND HEAT ECONOMICALLY
  • OPEN THE VIEWING PANE AUTOMATICALLY

Unique design and innovative technology. At first glance, the Varia FDh H₂O fireplace insert impresses with its modern design and the two glass doors that provide a unique view. At second glance, the water-bearing fireplace is also technically equipped with that certain extra. It uses the energy of the firewood twice and also heats water, which can be used for heating or as hot water. This not only ensures optimal efficiency but also allows you to heat your living space in a CO₂-neutral way.

Learn more

Oxhaqe Kaldajë
Varia FDh H₂O

Varia FDh H₂O

Detaje teknike

Klasi i energjisë:

A+
Fuqia:

14.7 – 21.2 kW
Fuqia në ujë:

13.2 kW
Rendimenti:

>80%
Lartësia e derës:

513 mm
Gjerësia e derës:

671 mm
Gjerësia totale:

878 mm
Thellësia totale:

618 mm
Diametri i tubit:

200 mm
Hapja e derës

Me ngritje
Pesha:

380 Kg
Prodhuar në:

Gjermani

KENI NEVOJË PËR NDIHMË?

Na dërgoni mesazh në WhatsApp tani.
Shkarkimet

Use fireplace heat throughout the house to save energy and costs

Wood fireplaces are becoming more and more popular. Our modern systems not only give you warmth and cozy moments by the fire. They can do much more: innovative combustion technology allows them to make the best possible use of the heat from the fireplace. Water-bearing fireplaces in particular are currently attracting a lot of attention, because they score double points: on the one hand, they heat the room next to the fireplace, and on the other, they supply the energy for the central heating system. Water-bearing fireplaces are also characterized by particularly high energy efficiency. By making optimal use of the fuel, you not only save energy, but you also save on heating and hot water costs.
HEAT
With our water-bearing fireplaces, the system is integrated into the house’s heating system. A fireplace generates heat which, depending on the type of system, reaches the living space mainly as radiant or convection heat. In water-bearing fireplaces, there is a so-called “heat exchanger” above the combustion chamber. This ensures that excess energy from the flue gas can be used and stored more efficiently. How does it work? The heating water flows “cold” through your home’s piping system into the heat exchanger, where it is heated by the energy from the fire. The heated water is transferred to a water tank, the buffer tank. There, the energy is stored and can be used through the heating piping system in remote rooms and, most importantly, also time-delayed, for example, to support the central heating system.

How a water-bearing fireplace works

Water-bearing

Why an H2O fireplace from Spartherm?

Fireplace solutions for every living situation

We offer you different water-bearing fireplace solutions that perfectly fit your needs, e.g. water-bearing fireplace stoves in many shapes, sizes and surfaces. In addition to the practical all-in-one solutions, there are also water-bearing fireplace inserts that can be used to implement individual design wishes in stove construction. We also have water-bearing tiled stoves in our range. This means that the right water-bearing fireplace solution is available for all structural conditions, and there are no limits to creativity in fireplace design.
H2O
Since the foundation of our company in 1986, we have been constantly developing innovations in the field of combustion technology for wood-burning stoves. More than three decades of experience and know-how flow into our water-bearing stoves. The water-bearing appliances are characterized by a large number of innovative elements, which together offer high efficiency and technical refinements. In addition to the high efficiency, our customers particularly appreciate the excellent workmanship of our appliances.

What makes Spartherm water-bearing fireplaces special?

innovations
