Glass Enclosed

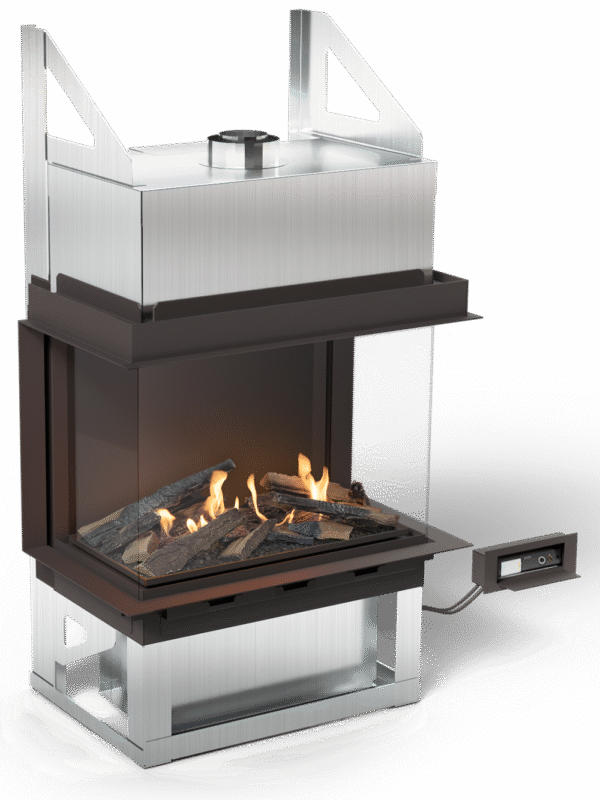

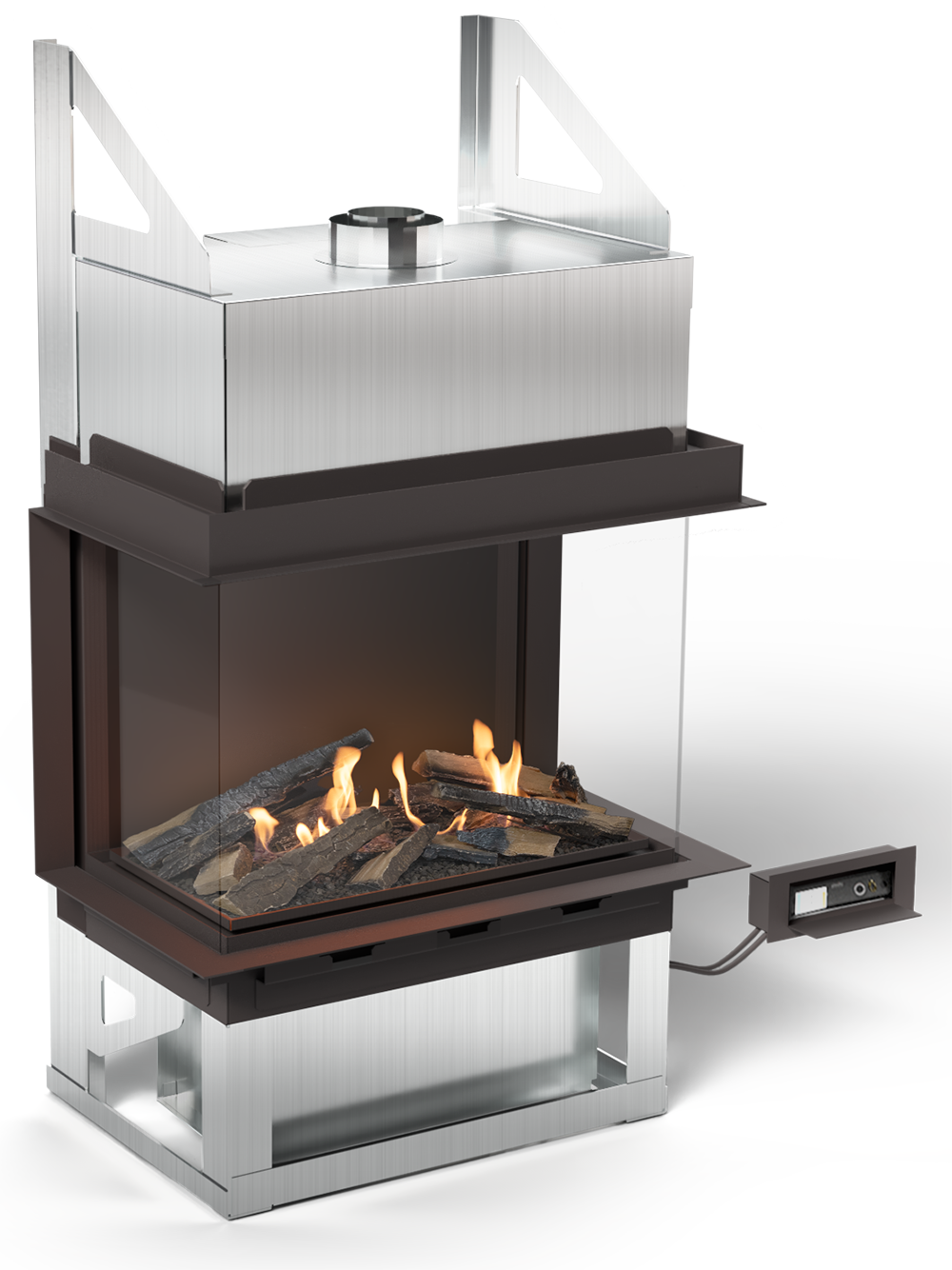

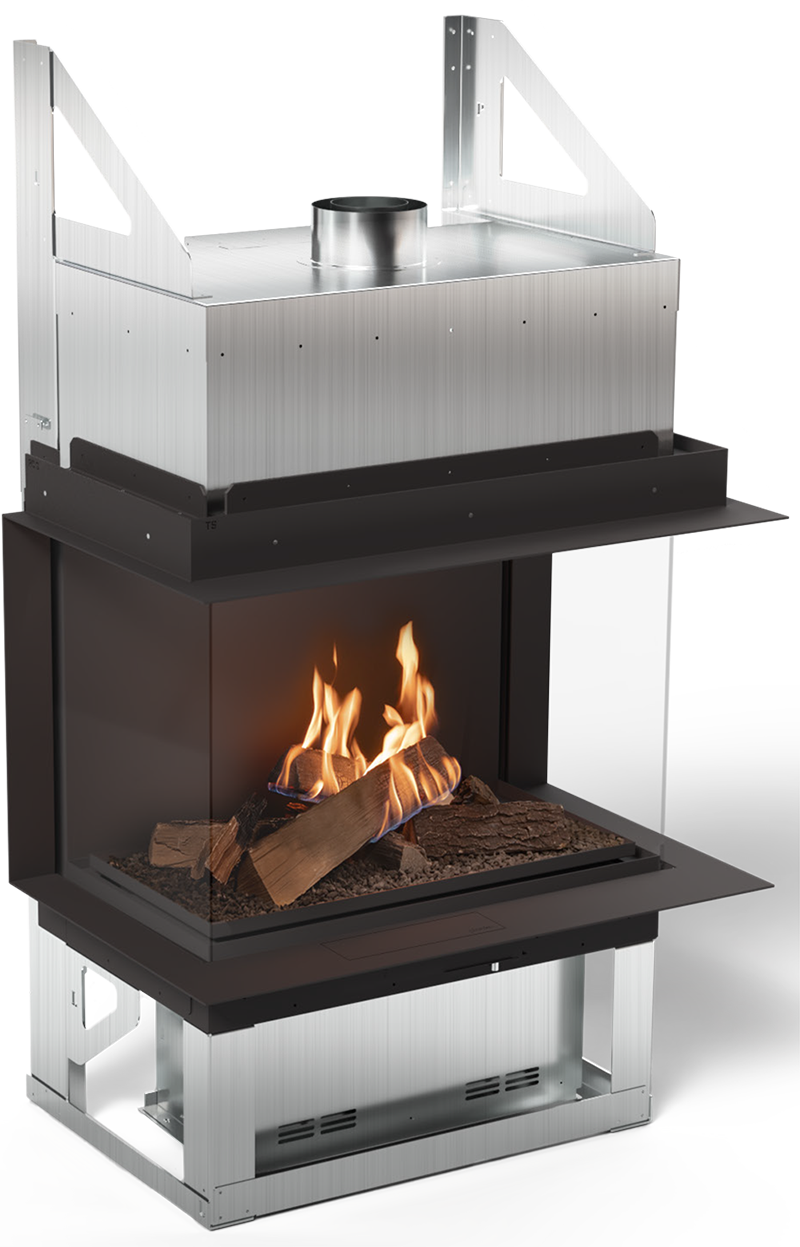

Sono Three Sided
Detaje teknike
Loading...
| Lëndë Djegëse | Bio-Etanol |
|---|---|
| Tipi i ndezjës | Elektronik (Pult, App) |
| Nivelet e flakes: | 6 |
| Fuqia: | 9.5 kW |
| Capaciteti: | 10.5 L |
| Kohë diegieje: | max 17 orë |
| Pamja e zjarrit (WxDxH): | 625 x 350 x 500 mm |
| Sistem oxhaku: | Concentric flue |
| Diametri i tubit: | 150/100 mm |
| Dimensionet (WxDxH): | 872 x 653 x 1470 mm |
| Pesha | 155 Kg |
| Lyerja: | Black powder coating |
| Prodhuar në: | Poloni |
PLANIKA NET-ZERO APP
- Control the flame
- See the fireplace messages
- Check the fuel level
- Set the work timer
- Activate child lock
Clean combustion and interior temperature control
Sono operates with BEV® technology – the fire is generated solely by bioethanol vapors, without smoke, soot, or odor. The entire process is fully automatic, electronically controlled, with flame height adjustment and a safety system. Unlike most Planika fireplaces with BEV® technology, Sono requires connection to a concentric chimney system. This solution allows: – to bring in combustion air from outside, – to dissipate some heat outside the building, – to minimize the fireplace’s impact on the interior temperature. This is an important feature in projects where maintaining thermal comfort is crucial – for example, in energy-efficient homes, air-conditioned apartments, or small rooms with stable thermal parameters.
Fire visible from every angle, without unnecessary structural elements
The entire structure of the Sono fireplace is encased in tempered glass, which organizes the flame and ensures its stability even in open spaces. The glass casing also serves a protective function – it separates the fire from the user, which can be important in locations exposed to children, guests, or customers. Thanks to the full glazing, the fireplace maintains a neutral form and easily adapts to modern finishing materials.
A multi-dimensional flame inspired by a classic fireplace
The Vitro model features a new type of BEV® burner with a unique arrangement of ceramic logs, arranged in several planes and supported by special holders. This design creates a sense of depth – the flame expands not only in a line but also in width and height, visually reminiscent of a campfire or wood-burning fireplace. This option is perfect for projects seeking a more natural, dynamic fire – without a linear form.
THREE VERSIONS FOR DIFFERENT FIRE VIEWS
Sono is available in three variants, allowing you to present the flame depending on the interior design: – Three-Sided – fire visible from three sides, as the focal point of the space; – Left Corner – fire view from the front and left; – Right Corner – fire exposure from the front and right. Each variant offers a different flame view configuration – so you can choose the one that best suits the spatial concept of your home or commercial project.
LEFT CORNER
RIGHT CORNER
THREE-SIDED
Control your fire exactly how you want
Vitro can be operated in several ways:
– via a mobile app,
– using a remote control,
– via an external panel,
– or as part of a Smart Home system.
Remote control gives you full control over the fireplace without having to approach the device – just use your phone or the remote control to turn it on, off, or adjust the flame height. The external panel with an LCD screen and fuel port can be mounted near the fireplace, allowing for convenient filling of the tank and intuitive operation.
