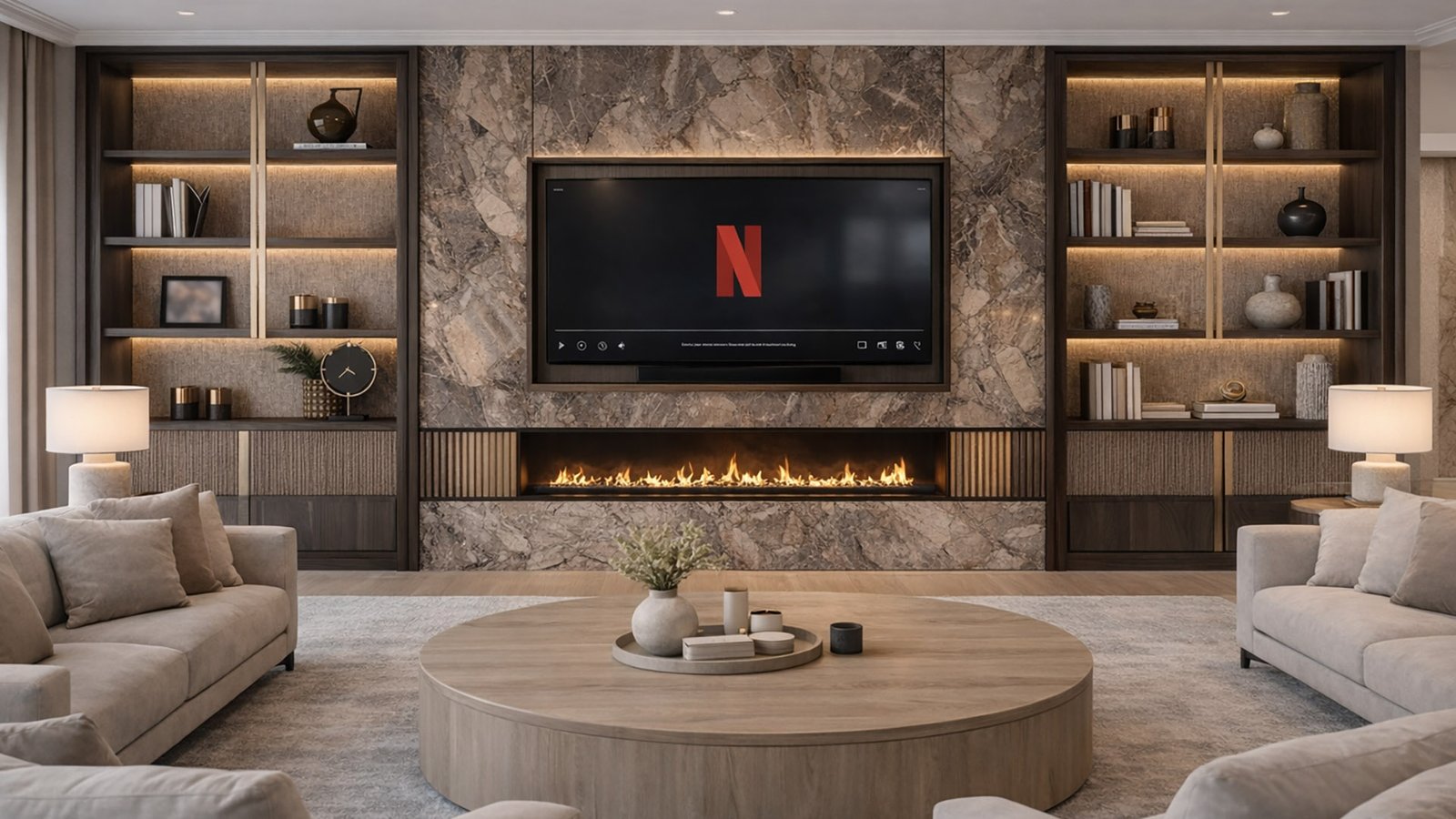

FLA4 / FLA4+ 990

LONG FIREPLACE WITH ADVANCED BEV TECHNOLOGY

Benefits

  • CUSTOMIZABLE FINISH OPTIONS
  • WIRELESS CONTROL – REMOTE OR MOBILE APP
  • OPTIONAL SHS
  • AUTOMATIC REFUELLING SYSTEM
  • AVAILABLE WITH EXTRA-LARGE FUEL TANK (FLA4+)
FLA4 is world’s first “intelligent fireplace” with patented BEV (Burning Ethanol Vapours) Technology created by Planika engineers. This long, line fireplace insert comes with all state-of-the-art solutions like temperature, seismic and tilting sensors, wireless control and an automatic refueling system. FLA4 is also available as FLA4+ – it provides same technological solutions with even more capacious tank. This fireplace can be easily customized to meet all individual needs of Planika clients.

Learn more

Burners

FLA4 / FLA4+ 990

Detaje teknike

Loading...
Tipi i ndezjës

Elektronik (Pult, App)

Gjatësia e zjarrit:

790 mm

Sipërfaqja

990 x 280 mm

Lartësia FLA4 / FLA4+

273 / 359 mm

Lyerja

Black powder coating

Nivelet e flakës:

6

Capaciteti FLA4 / FLA4+

5.5 / 17.2 L

Kohë diegieje FLA4 / FLA4+

8 / 26 orë

Fuqia:

7.0 kW

Min. vellim dhome

70 m³

Pesha FLA4 / FLA4+

27.5 / 38.5 kg

Prodhuar në:

Poloni

FLA4 NET-ZERO APP

One FLA4 – many options FLA4 can be installed in various arrangement options

ISLAND
SINGLE-SIDED
LEFT/RIGHT CORNER
THREE-SIDED
ROOM DIVIDER
TUNNEL
FLA4

LUXURY FIREPLACE IN VARIOUS SHAPES

FLA4 with BEV (Burning Ethanol Vapours) Technology is a zero-clearance fireplace that can be quickly installed in built-ins made of various materials, even flammable ones such as wood. This makes it possible to create a variety of real fire arrangements without design restrictions.
Automatic refilling system
Automatic refilling system
Planika was the first to introduce the automatic refilling system for bioethanol fireplaces. An automatic pump allows you to refill the fireplace quickly and effortlessly. All it takes in connecting the pump with an integrated panel and putting the other pipe to the botttle with fuel and pushing the button. Once the tank is full, the pump switches off automatically. This protects the user and the fireplace from any accidental spillage or overfilling.

INNOVATIVE TOUCH PANEL CONTROL

One of the groundbreaking features of the FLA4 fireplace is its modern touch panel control, seamlessly concealed behind a flap for an elegant finish. This intuitive interface provides users with the capability to effortlessly adjust and monitor the fireplace’s settings. With a simple touch, you can gauge the fuel status, modify the flame’s intensity, and even set an automatic shut-off timer for added peace of mind. Concerned about the safety of your little ones? The child lock option ensures that curious fingers won’t accidentally ignite the fireplace. For those who desire a complete lockdown of the control panel, the device lock offers an added layer of security. These enhancements not only elevate user convenience but also prioritize safety, marrying innovation with practicality in the FLA4 design.
PLANIKA APP

FLA4 NET-ZERO app

FLA4/4+ fireplace can be operated with a smartphone or any other mobile device. Custom-made application will allow you to:
  • ✓ Control the flame
  • ✓ See the fireplace messages
  • ✓ Check the fuel level
  • ✓ Set the work timer
  • ✓ Activate Child Lock
available on appstore
available on appstore

NET ZERO FIREPLACE

Planika bioethanol fireplaces with BEV Technology provide a net zero combustion, meaning they produce only a minimal amounts of CO2 that can be compared to what one person exhales. Bioethanol which fuels Planika automatic fireplaces is made of corn, wheat, or potates. These plants absorb CO2, which contributes to its continuous circulation in nature. Thanks to this, these innovative fireplaces can be used in cities that regulate or prohibit emission of fossil fuels.
FLA4 / FLA4+


SAFETY FIRST

For over 20 years, Planika has been a pioneer in bioethanol fireplaces safety. Our solutions are protecting the customers around the world. Now you can get all of them in one FLA4 fireplace.

Temperature sensors

Multiple temperature sensors are installed in areas where heat is generated. Their sensitivity to temperature changes reaches 0.1 degrees and they react immediately to any undesirable changes.

Fuel level sensor

To ensure that the combustion process runs smoothly, the fireplace has been equipped with a fuel level sensor. If the level of the liquid fuel in the main tank is too low, the FLA4 switches off automatically and sends the information to the user. You can check the amount of the fuel any time in the dedicated FLA4 NET ZERO app.

Seismic sensors

To meet the demands of our customers who live in areas of increased seismic activity, we’ve introduced a dedicated seismic sensor that will shut off the device if it detects vibrations. It will also react if the device is hit.

Spillage sensor

Since we’re dealing with bioethanol, it’s always good to have a system of spillage detection on board. Deliberately tilted bottom of the device will ensure, that any hypothetical drop of fuel will fall right on the sensor.

Robust construction

At Planika, we make sure that our products meet the highest quality standards and pass mechanical, chemical and temperature resistance tests. Both the top plate of the burner and the fuel tank are made of stainless steel to provide high performance.

Fuel retrieval system

FLA4 is equipped with a system that redirects unused liquid fuel from the vapour generator and transports it back to the fuel tank when the device is not in use. The same situation occures when the fireplace detects any unusual situation and shuts down automatically.

OPTIONAL ACCESSORIES

Smart Home System module for ethanol firebox insert
SHS MODULE
glass screeen for bioethanol burner insert
GLASS SCREENS*
try with logs or stones for bioethanol burner insert
TRAY WITH LOGS or STONES

* Room divider, tunnel and island arrangements require higher glass panels alongside the burner to stabilize the flame from windblows.
